- Size: 1950*3100*1650cm
- Place of Origin: JINAN
- Brand Name: Mei Ming Technology
- Model Number: MM-1325
- Weight: 1000.000 kg
工作台面积 Machine size | 1380×3000mm |
工作行程 Work Envelope | 1300×2500mm |
重复定位精度 Repositioning resolution | ±0.02mm |
系统分辨率 Resolution | ±0.025mm |
主轴功率 Power of Spindle | 意大利 HSD-6KW |
数控排钻 Pneumatic line boring head | 意大利 HSD-9V |
主轴转速 Spindle speed | 6000-18000rpm/Min |
空运行速度 Max.speed | 50m/Min |
最大加工速度 Max.cutting speed | 15m/Min |
龙门高度 Bridge clearance | 200mm |
工作电压 Working voltage | AC380V/50Hz |
运行指令 Command code | HPGL G 代码 |
软件 | 美铭专用生产设计软件 |

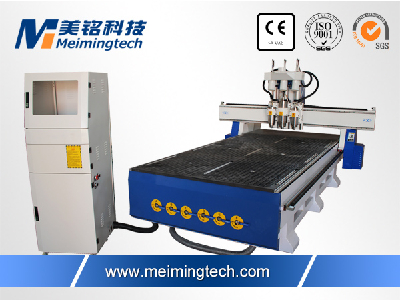

Woodworking hole material plane, MM - 1325 is a professional special machines used for punching board type custom furniture and cutting material, completely replace the traditional push table saw and electronic cutting saw, get rid of the traditional dependence on artificial cutting mode, the cutting at the same time also in vertical hole, through the combined with a dedicated production design software, realize intelligent production. Province labor, material, time!
Good parts: adopt Taiwan linear guide; German-made ball screw; Italian motorized spindle; Taiwan reducer; Japan yaskawa servo drive system, etc.
Reasonable design: independent operating cabinet, more convenient operation and maintenance.
Perfect automatic oil lubrication system, prolong the service life of the machine.
Software: supporting the inscription is special software, to implement custom wardrobe cabinets and fast design and single, intelligent layout, zero error.
