- Size: 1950*3100*1650cm
- Place of Origin: JINAN
- Brand Name: Mei Ming Technology
- Model Number: MM-1325
- Weight: 1200.000 kg
| Performance indicators | parameter | 可选 |
行程范围 Work Envelope | X 行程 | 1300mm | 1500mm/2000mm |
Y 行程 | 2500mm | 3000mm/4000mm | |
Z 行程 | 300mm |
| |
加工精度 The machining accuracy | ±0.1mm |
|
|
重复定位精度 Repeat positioning accuracy | ±0.05mm |
|
|
台面结构 Mesa structure | 真空吸附 |
|
|
X 、 Y 、 Z 结构 | X 、 Y 齿条, Z 丝杠 |
|
|
空行速度 Empty line speed | ≥60000mm/min |
|
|
工作速度 Spindle speed | ≥25000mm/min |
|
|
主轴功率 Power of Spindle | 9.0KW |
|
|
主轴转速 Spindle speed | 0-24000rpm/min |
|
|
运行模式 The operation mode | 伺服 |
|
|
运行指令 Command code | Gcode |
|
|
工作电压 Operating Voltage | AC380V/50HZ |
|
|
操作系统 operating system | The new generation system |
|
|

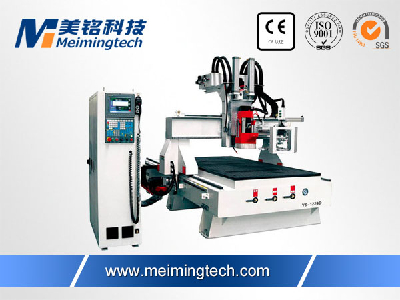

1 MM - 1325 change the disc cutter machining center for machining or diverse complexity of diversified products, features extensive: ornamental engraving and milling, drilling, cutting, side milling, leading edge, etc.
2 this models of various mechanical and electrical components are all top products in the international, vacuum system and transmission system such as Germany, Japan servo drive system, Italy imported from the spindle.3 hat type automatic tool change system database is eight, the knife, tool change time only 8 seconds.
4 dual-track bilateral transmission machines, heavy cutting machine.
More than five other models are optional.
