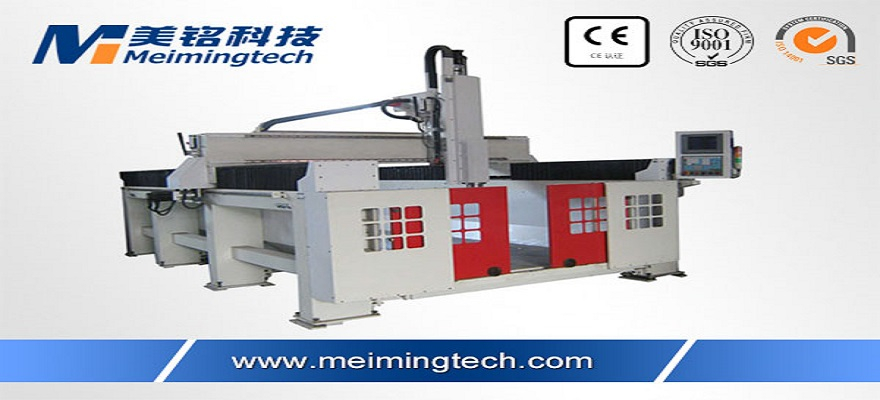

Features
◆ Taiwan new generation of numerical control system, high precision and speed.
◆ imported four-row ball bearing, widening linear guide rail, self-lubricating block. Carving equal force in all directions to ensure the accuracy and mechanical strength.
◆ Z-axis travel can be heightened to 1.15 meters, processing, large format, suitable for processing large-scale three-dimensional surface machining.
◆ intelligent processing cross-border protection function can prevent mechanical collision design file is too large due to processing.
◆ diversified control can control processing speed, idling speed, cutting speed, greatly improving the quality of processed products and processing efficiency
◆ Another 2550 models to choose from
Performance parameters
Performance

parameter
Optional
stroke
X stroke
2000mm
Within 3000mm
Y travel
4000mm
Within 6000mm
Z travel
1000mm
1150mm
Platform Size

2000x4000mm

Accuracy
Precision
± 0.05mm

Repeatability
± 0.03mm

structure
Mesa structure
The whole cast

X, Y, Z structure
X, Y, rack, Z screw

speed
Blank line speed
≥16000mm / min

Working speed
≥10000mm / min

Spindle
Spindle power
Water-cooled 6.0KW

Spindle speed
100-24000r / min

Spindle taper
BT40

Spindle nose to table distance
150-1150mm

Run mode

Servo

Operating Voltage

AC380V / 50Hz

Run command

G code, F / S command compatible

operating system

Taiwan's new generation of

net weight

2 t
