Features
1, imported linear square rails, double four ball slider, loading capacity, smooth operation and long life. Imported ball screw, high accuracy, precision knife.
2, using high-precision rack and pinion, speed and high accuracy.
3, completely out of the computer with the USB interface can be remotely operated DSP operating system, handle operation, the operation easier and more user-friendly design, a unique intelligence budget rules, full electrical potential to achieve high speed processing, linear synchronous, curve is more perfect, not accounting for computer memory and enables the automatic start and stop cutting spindle.
4, software compatibility, support type3 / Actcam / Castmate / Wentai and other CAD / CAM design software.
5, optional leading international technology vacuum adsorption countertops, with a strong adsorption force pump, the six district design, can be strong adsorption of materials of different sizes.
6, high-speed drive stepper motor and drive, Y axis used dual-motor drive, with vigorously cutting spindle carving faster.
Performance parameters
Machine type

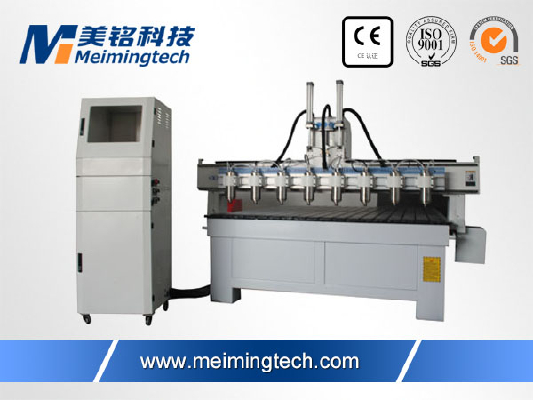

MM-1825 relief engraving machine
Optional
X, Y-axis travel
1800 × 2500mm
<2000mm × 4000mm
Z-axis travel
200mm
300mm
Platform Size
1950 × 3000mm

Maximum traveling speed
> 25m / min

Clamping Type
Vacuum adsorption

Carving instructions
G code * .u00 * .mmg * .plt

Power (spindle)
2.0KW

Operating Voltage
AC380V / 50Hz

Spindle power
3.5KW (air-cooled)
4.5KW (air-cooled)
Spindle speed
0-18000rpm / min

Way of working
Stepping
Servo
