Features
Taiwan's new generation of syntec numerical control system, high precision, speed;
Imported four-row ball bearing, widening linear guide rail, self-lubricating block. Carving equal force in all directions to ensure the accuracy and mechanical strength;
Z-axis travel can be heightened to 1.5 meters, processing, large format, suitable for large three-dimensional curved surface machining;
Intelligent processing cross-border protection function can prevent mechanical collision design file is too large due process;
Diversification control can control processing speed, idling speed, cutting speed, greatly improving the quality of processed products and processing efficiency;
Another MM-1630 models to choose from;
Suitable Materials: Poly (bubble), plaster, wax, wood and the like.
Performance parameters

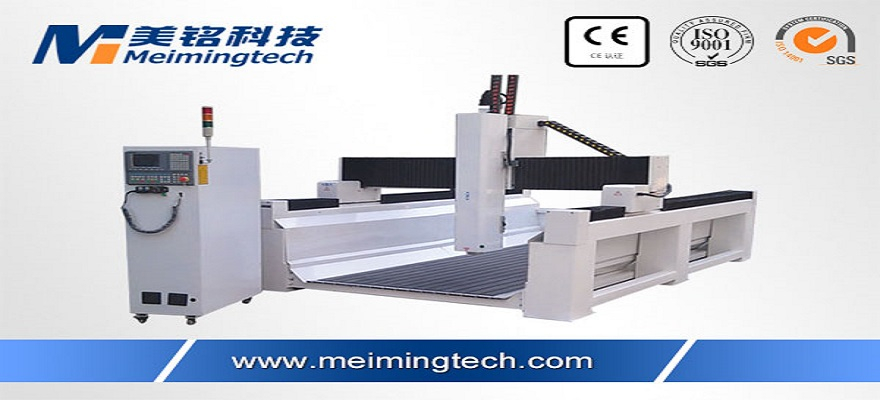

Model MM-1530 engraving machine Styrofoam
X-axis 1500mm
3000mm Y-axis travel
Z axis 1000mm
Mesa structure aluminum
Orbit or on the silver side rails Taiwan Intime
Drive Type X, Y rack, Z screw
Precision ± 0.1
Repeat positioning accuracy of ± 0.1
The maximum blank line speed 16000mm / min
Maximum processing speed 10000mm / min
Cooling water
Spindle power 7.5KW parameters
Speed 0-12000r / min
Inverter 7.5KW inverter Quartet
Yaskawa servo drive system 850w
Run command G code
Taiwan's new generation of control systems EZ3M
Automatic oiling system
Working voltage AC380V / 3PH / 50HZ
