- Place of Origin: Shandong Jinan
- Brand Name: Mei Ming Technology
- Model Number: MM-1325
Features

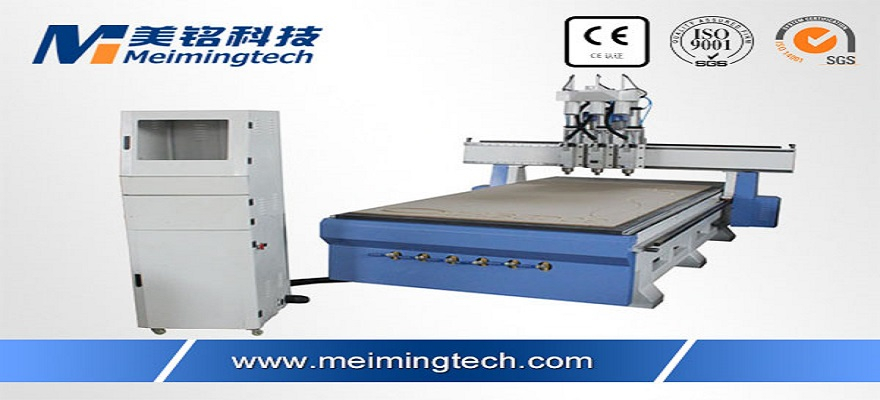

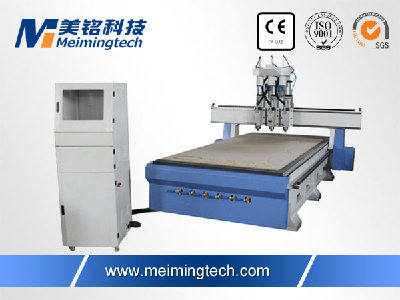

• MM-1325 woodworking hole material plane is a professional dedicated machine for a plate custom furniture blanks punched, completely replace the traditional sliding table saw and electronic materials saw, is expected to open away from the traditional reliance on manual mode, is expected to open while the vertical hole may stretch into Kazakhstan, through a combination of production design and special software, truly intelligent production. Provincial labor, material saving, save time!
• Good parts: made in Taiwan linear guide; ball screw from Germany; Italy electric spindle; Taiwan reducer; Japan Yaskawa servo drive system.
• rational design: Independent cabinet operation, use, maintenance more convenient.
• Complete automatic grease lubrication system, extending the life of the machine.
• Software: supporting the United States Ming special software, custom closet cabinet design and quick dismantling a single, intelligent layout, zero error.
Performance parameters
Table size Machine size
1380 × 3000mm
Working stroke Work Envelope
1300 × 2500mm
Repeat positioning accuracy Repositioning resolution
± 0.02mm
Resolution Resolution System
± 0.025mm
Spindle power Power of Spindle
Italy HSD-6KW
CNC DRILLING Pneumatic line boring head
Italy HSD-9V
Spindle speed Spindle speed
6000-18000rpm / Min
Air speed Max.speed
50m / Min
Maximum processing speed Max.cutting speed
15m / Min
Longmen Bridge clearance height
200mm
Working voltage Working voltage
AC380V / 50Hz
Run command Command code
HPGL G codes
software
Meiming dedicated production design software
- Place of Origin: Shandong Jinan
- Brand Name: Mei Ming Technology
- Model Number: MM-1325
