Features

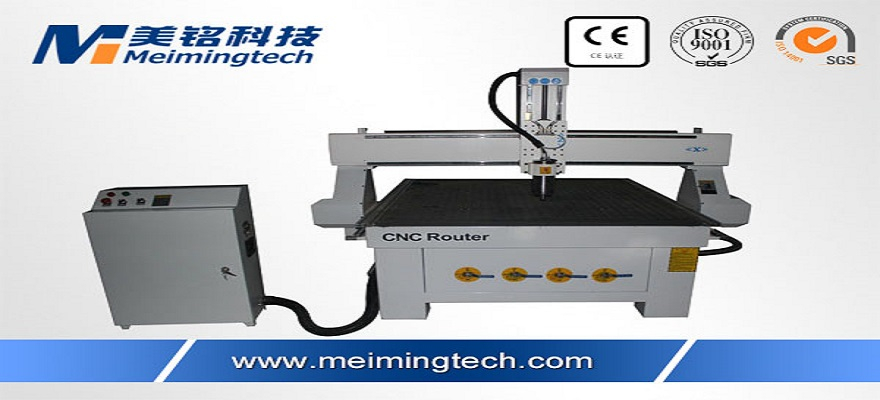

MM-1325 wood engraving machine is the high cost of a universal product, the main configuration are imported, a joint venture brand components, performance and stability.
Table for the vacuum table, high adsorption power can be strong adsorption of materials of different sizes, density is not deformed (1.3-1.45g / cm), can be high temperature (115 ℃).
Speed, high efficiency, engraving speed of up to 18 m / min or more. Fine carving without jagged corrugated bottom surface smooth, clean cut.
Another MM-1530 wood engraving machine, MM-2030 wood engraving machine and other variety of models to choose from.

Performance parameters
model
MM-1325 wood engraving machine
X, Y-axis travel
1300 × 2500mm
Z-axis stroke
200mm
Maximum operating speed
25m / min
Maximum engraving speed
15m / min
Resolution
0.005mm
Repeatability
0.05mm
Clamping means
Vacuum (suction dual folder type)
Carving instructions
G code * .u00 * .mmg * .plt
Software operating environment
windows98 / 2000 / xp
Control System
Weihong
Operating Voltage
AC380V / 50Hz
Spindle power
3KW water-cooled
Spindle speed
0-24000rpm / min
Way of working
Stepping
transfer method
rack
Running rail
Triaxial full side rails (Taiwan, silver or AMT)
