Features
1. This section models suitable for 2-3 of flowers carving knife engraving and milling, processing a variety of flowers without tool change, the program automatically runs, its main feature is less investment, high income, and low maintenance, easy to operate, for CNC operation capacity of poor people, programming operation is also very easy.
2, advanced motion control system, auto-complete multi-level 3D processing, can be fast, smooth three-dimensional machining, engraving or cutting can be realized offline operation.
3, the overall steel structure welding tempering aging treatment, solid shape, Gantry mobile, fixed working table can be arbitrary processing work surface material.
4, imported linear square rails, double four ball slider, loading capacity, smooth operation, high precision, long life. Imported high precision ball screw, the knife precision.
5, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
6, six vacuum partition table, can be effective adsorption of different size plates. Vacuum pump can be selected imported brands of oil-free vacuum pump to solve the water circulation pump trouble cold weather change water problems.
7, high-speed drive stepper motor and drive, Y-axis dual-motor drive, so that high-speed operation up to 35 m / min or more blank line speed, with vigorously cutting engraving spindle speed can be more improved.

Performance parameters
model

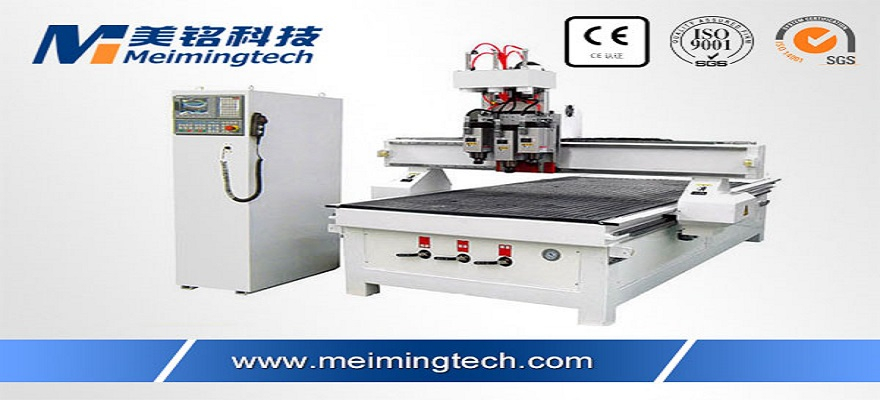

MM-1325 multi-step woodworking engraving machine
X, Y-axis travel
1300 × 2500mm
Z-axis travel
200mm
Maximum operating speed
25m / min
Maximum engraving speed
10m / min
Resolution
0.005mm
Repeatability
0.05mm
Clamping means
Vacuum adsorption
Carving instructions
G code * .u00 * .mmg * .plt
Software operating environment
Windows98 / 2000 / xp
Control System
Weihong
Operating Voltage
AC380V / 50Hz
Spindle power
3X4.5KW (air-cooled)
Spindle speed
0-18000rpm / min
Way of working
Servo
transfer method
rack
Running rail
Triaxial full side rails (Taiwan, silver or AMT)
