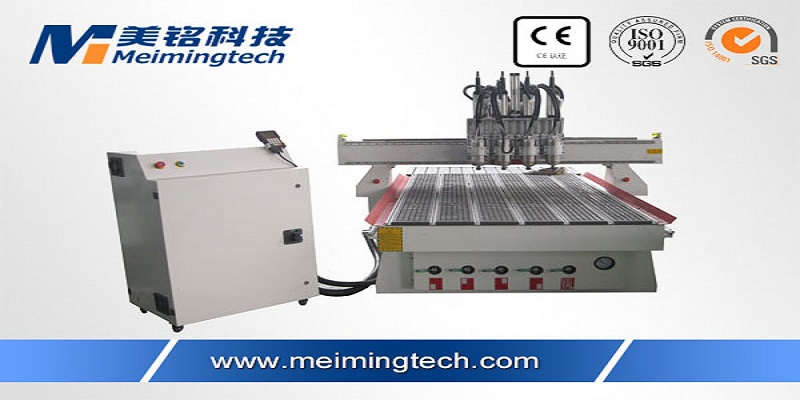

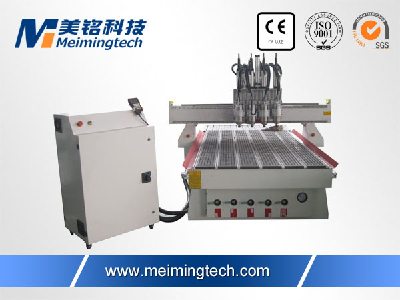

MM-1325 four-hole material plane

MM-1325 four-hole material plane

  • Min.Order Quantity: 1 Set
  • Supply Ability: 300 Sets per Month
  • Port: Chinese Port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2015-05-07
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  Shandong Jinan
  • Brand Name:  Mei Ming Technology
  • Model Number:  MM-1325

Features
• MM-1325 four-hole material plane is a professional dedicated machine for a plate custom furniture blanks punched, completely replace the traditional sliding table saw and electronic materials saw, is expected to open away from the traditional reliance on manual mode, open while the vertical hole material also stretch into Kazakhstan, through a combination of production design and special software, truly intelligent production. Provincial labor, material saving, save time!
• Good parts: made in Taiwan linear guide; ball screw from Germany; Italy electric spindle; Taiwan reducer; Japan Yaskawa servo drive system.
• rational design: Independent cabinet operation, use, maintenance more convenient.
• Complete automatic grease lubrication system, extending the life of the machine.
• Software: Supporting engraving special software, custom closet cabinet design and quick dismantling a single, intelligent layout, zero error.
Performance parameters

model
MM-1325 multi-step woodworking engraving machine
X, Y-axis travel
1300 × 2500mm
Z-axis travel
200mm
Maximum operating speed
25m / min
Maximum engraving speed
10m / min
Resolution
0.005mm
Repeatability
0.05mm
Clamping means
Vacuum adsorption
Carving instructions
G code * .u00 * .mmg * .plt
Software operating environment
Windows98 / 2000 / xp
Control System
Weihong
Operating Voltage
AC380V / 50Hz
Spindle power
4X4.5KW (air-cooled)
Spindle speed
0-18000rpm / min
Way of working
Servo
transfer method
rack
Running rail
Triaxial full side rails (Taiwan, silver or AMT)

  • Place of Origin:  Shandong Jinan
  • Brand Name:  Mei Ming Technology
  • Model Number:  MM-1325
