Features
★ multi-head work, but also can work alone, compared with single-fold increase efficiency, economical and practical.
★ can also be many other nose up, with a large head and a separate processing area of the workpiece.
★ domestic double with ball screw nut imports running rails. And with power and memory, guaranteed in the accident (power outage) or the next day.
★ gantry movement, rugged no deformation, so that more precise positioning accuracy.
★ High-power cutting not only without serrated carving fine, smooth contours clear bottom surface.
★ can improve efficiency in the processing of carving master with complex patterns of product; during batch processing, product consistency, high quality; good stability of the device for a long time for processing, the error rate is low.
★ software compatibility, can be accessed by a variety of 3D engraving software and is compatible with carved software.
★ multiple head can be customized according to user needs, processing equipment table size can also be customized according to the actual production needs.
Performance parameters
Machine type

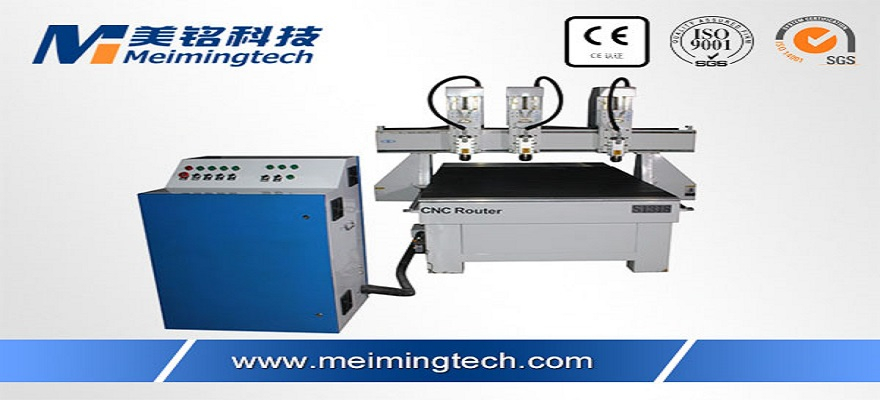

MM-1318-3 relief engraving machine
Optional
X, Y-axis travel
1300 × 1800mm
1300/1500/1800 / 2500mm
Z-axis travel
200mm

Maximum traveling speed
> 15m / min

Clamping Type
Clamping

Carving instructions
G code * .u00 * .mmg

Software operating environment
Windows98 / 2000 / XP

Power (spindle)
2.0KW

Operating Voltage
AC220V / 380V / 50Hz

Spindle power
4 × 1.5KW (air-cooled)
2.2KW (water-cooled)
Spindle speed
0-24000rpm / min

Way of working
Stepping
Servo
